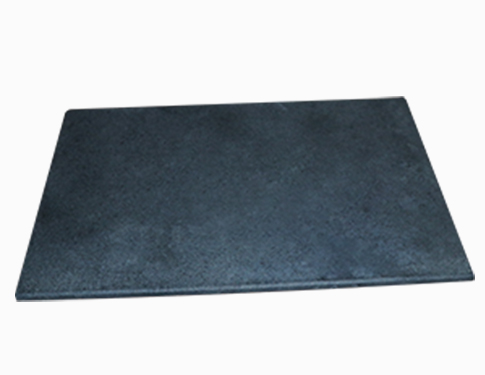

EPDM Underlay

Features

  • Excellent Durability
  • Excellent Sound Absorbant
  • Easy Install And Remove The Flooring
  • Recycle Epdm Base & Open Cell Structure
  • Good Heat Isnulation Properties

Applications

  • Effective Sound Absorbent In Building,hotel Etc
  • Shock Absorbent From Vibration

Technical Specification

Properties Value / Value Range U O M Standard Applied
DENSITY 900-1100 Kg/m3 ISO-2781
TENSILE StrENGTH >0.5 MPa ASTM D 412
ELONGATION AT BREAK >45 % ASTM D 412
STC 30 db DIN:52210 PART(IV)-1984
FLAMMABILITY PASS MM/MIN FMVSS 302
APPLICATION TEMPERATURE (-40 to 110°) °C ASTM 1329
THERMAL CONDUCTIVITY 0.049 W/m.K ASTM D 5930
